12v from USB-C PD

With Usb-c you actually have more than a 5v power-supply. USB-C can deliver 5v, 9v, 12v, 15v and 20v.

To get more than 5v from the power supply you need the equipment to negotiate with power supply to get the right voltage, as an example your phone or Laptop will request a higher voltage for higher charging rate.

I like one with physical dip switches, like this one:

.

Amazon.de : https://amzn.to/3VKZxDR

Amazon.co.uk: https://amzn.to/3XC6oSA

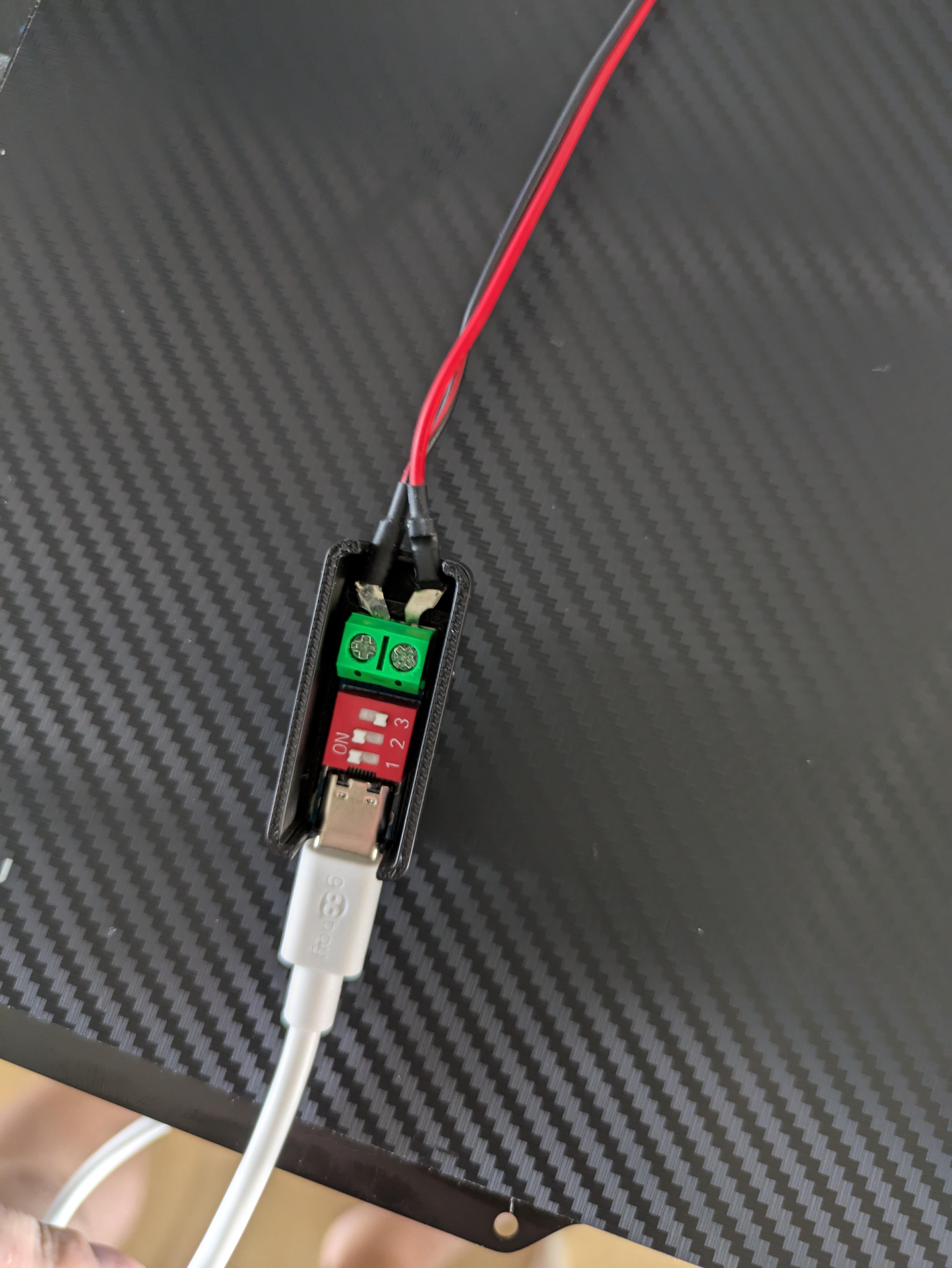

NOTE!! – My testing shows that ON is 0 so that 12V looks like this:

The Huge difference between a Step-down / buck converter (Like this one: https://amzn.to/3XDsQur) is that the Decoy requests the voltage from the Power-supply, but whatever wattage the power supply is available on the output – AND it does not use current as the step down/buck converter will do even though it is low.

But of course the Decoy relies on a USB-C PD Power supply. But at least here in Europe this is being standardized so chances are that you already have a few laying around.

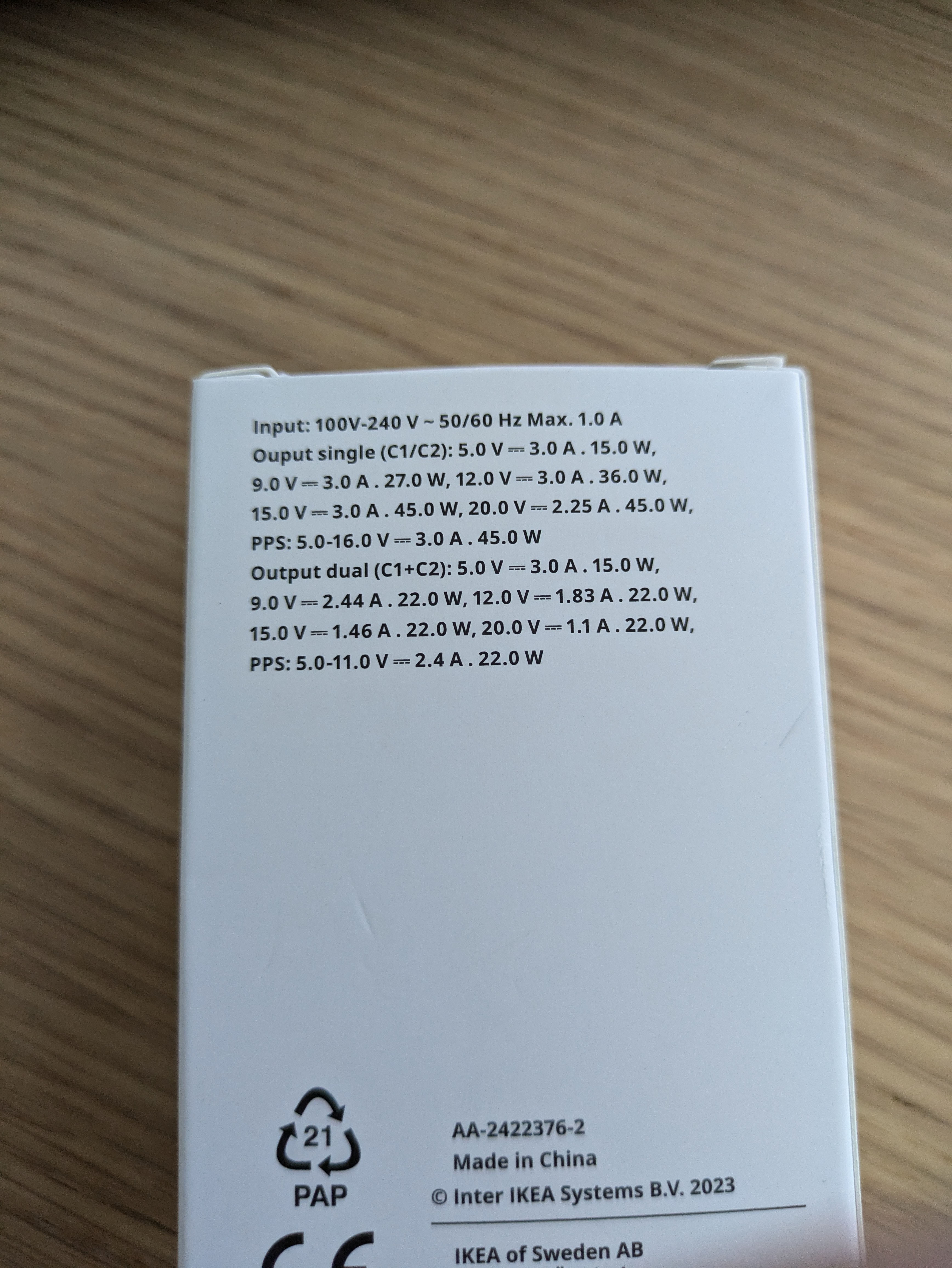

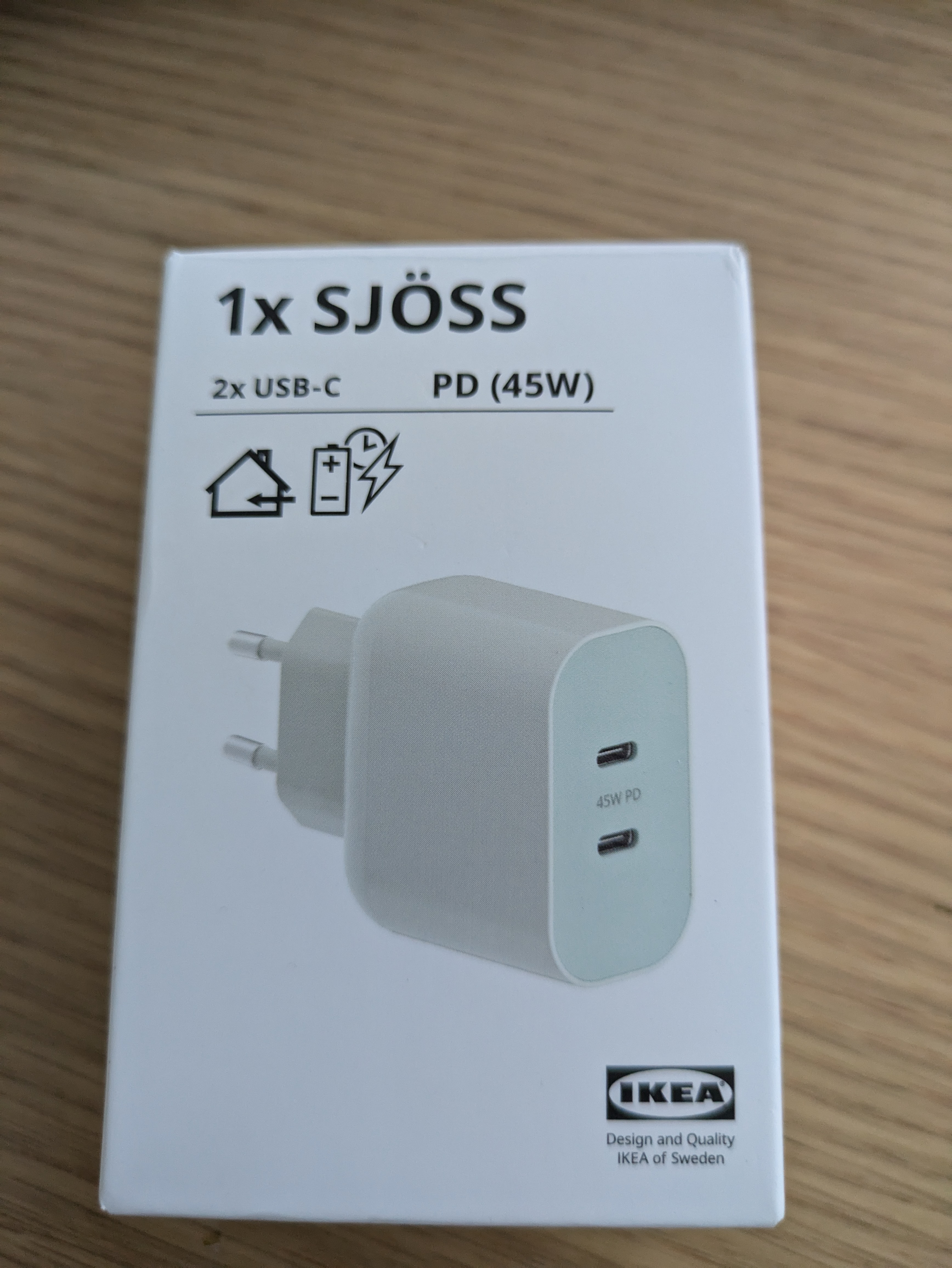

IMPORTANT! – Not all Chargers can deliver all voltages! most can get to 9V but if you need high hen check the specs on the charger e.g. this IKEA Dual USB-C Charger:

Another advantage is that you can be independent of the power grid just by using a a standard USB-C Powerbank, as long as it is PD rated. e.g.:

Amazon.de: https://amzn.to/4ckQfFw

Amazon.co.uk: https://amzn.to/4eHrFQP

You can monitor the Usage on USB-C with one of the small dungles like this one

Amazon.de : https://amzn.to/3zlcbBY

Amazon.co.uk: https://amzn.to/3XG1R1h

This can also be used to ensure that the voltage requested from the decoy is correct.

“Outdoor” 12v test

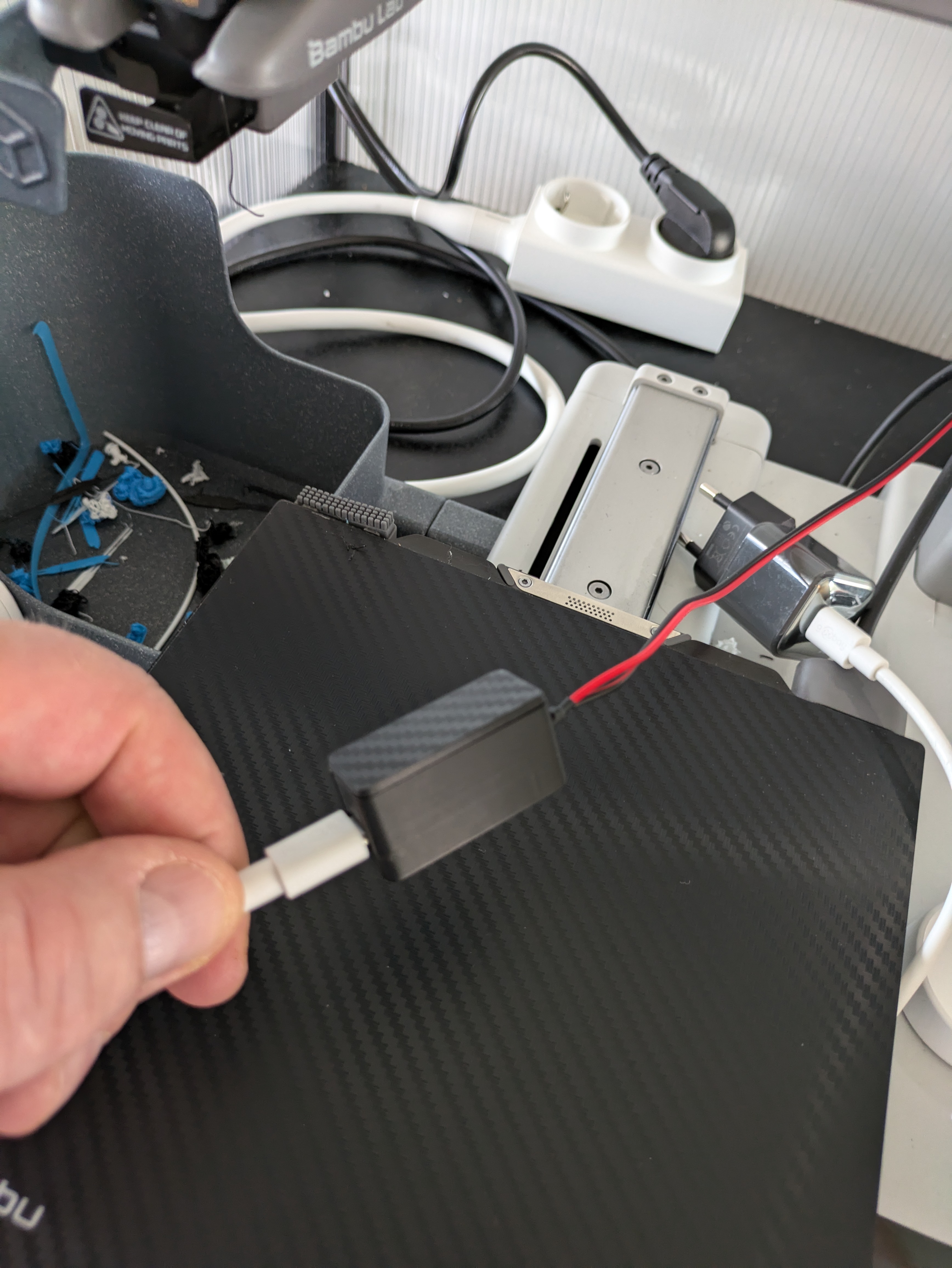

I have created a casing to the above Decoy module:

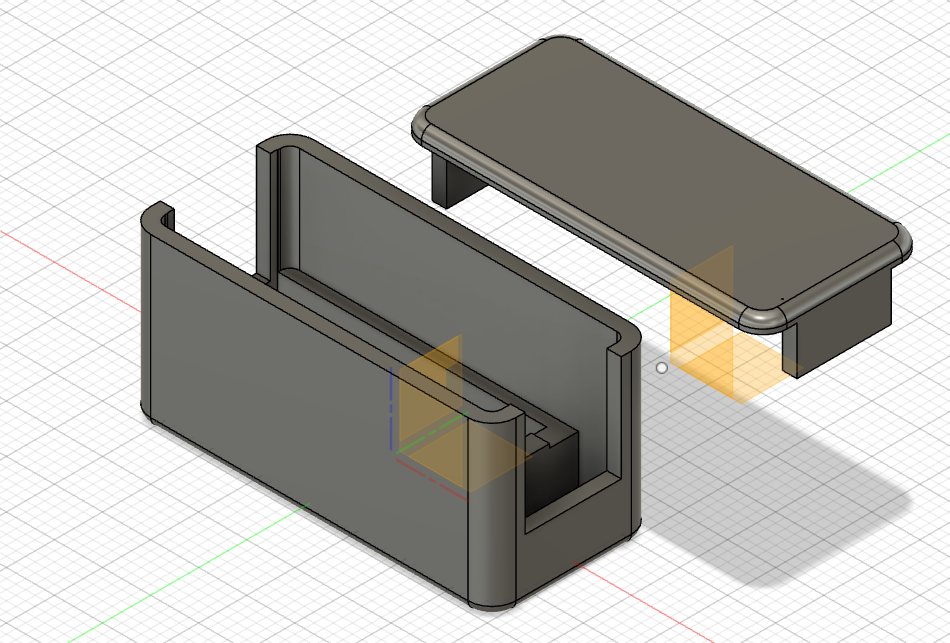

You can find the case 3D print file here:

MakerWorld: https://makerworld.com/en/models/515720#profileId-431974

Printables:

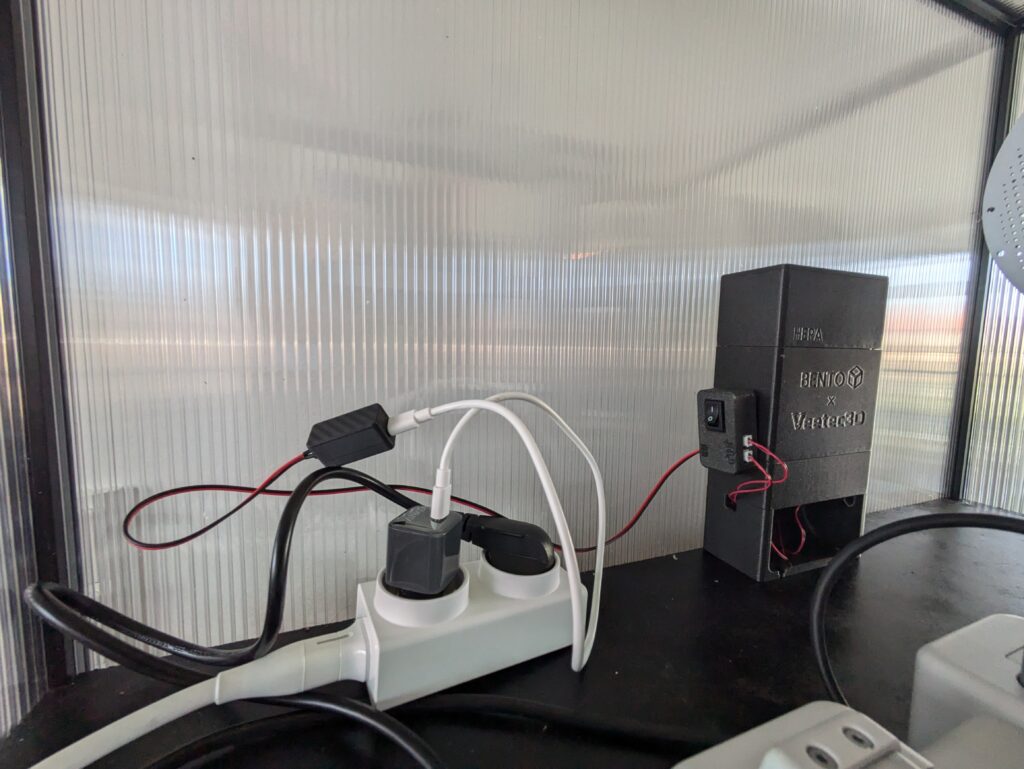

Here is my latest usage of it where I use it to power a 12v fan for a Filter in my 3D printer.
